Type：

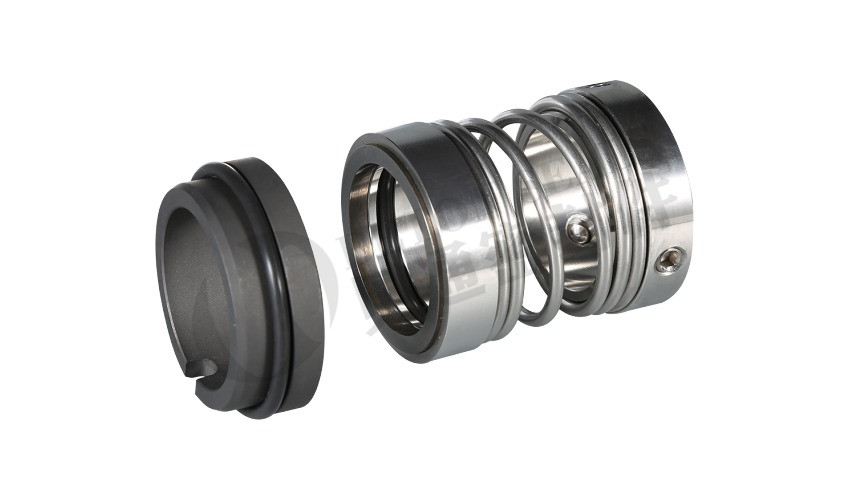

O-Ring Mechanical Seal
Replacement：
Pillar Us2
Temperature：
-20℃ to +180℃
Pressure：
≤1Mpa
Speed：
≤15m/s
Material：
Q2,U2,B,V1,P,E,V,F,G

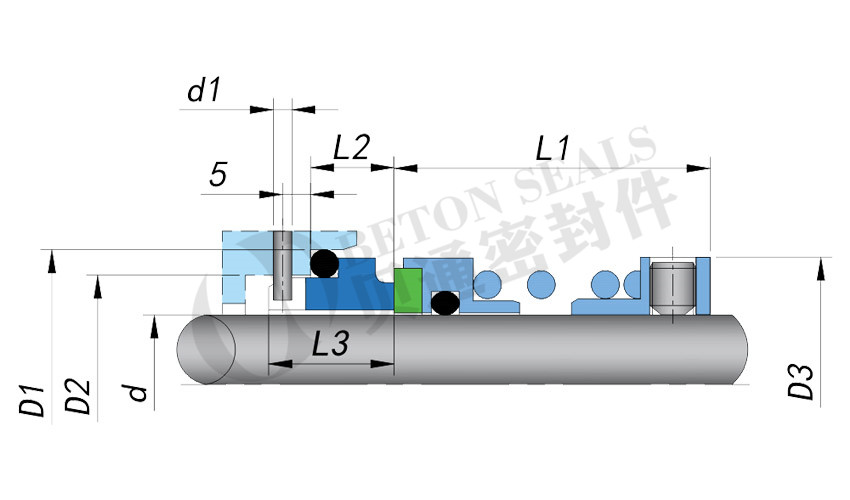

Size(mm) | D1 | D2 | D3 | L1 | L2 | L3 |
20 | 33.3 | 29.1 | 34.5 | 37.3 | 7.2 | 11 |
25 | 39.7 | 33.8 | 41.0 | 40.0 | 9.2 | 12 |
30 | 44.5 | 38.6 | 45.5 | 41.6 | 9.2 | 12 |
35 | 49.2 | 43.5 | 50.0 | 48.0 | 9.2 | 12 |
38 | 52.0 | 46.3 | 53.0 | 62.3 | 9.2 | 12 |
40 | 54.0 | 48.1 | 55.0 | 48.0 | 9.2 | 12 |
45 | 58.7 | 53.0 | 60.0 | 48.0 | 9.2 | 12 |
50 | 65.1 | 59.3 | 66.0 | 59.1 | 9.2 | 12 |
55 | 69.9 | 64.0 | 71.0 | 60.7 | 9.2 | 16 |
60 | 76.2 | 70.4 | 77.0 | 63.8 | 9.2 | 16 |
65 | 81.0 | 75.2 | 82.0 | 67.0 | 9.2 | 16 |
70 | 85.7 | 79.9 | 88.0 | 67.0 | 9.2 | 16 |
75 | 90.5 | 84.7 | 92.0 | 71.8 | 9.2 | 16 |
80 | 98.4 | 92.6 | 99.5 | 78.1 | 9.2 | 16 |
85 | 104.8 | 98.9 | 105.5 | 78.1 | 9.2 | 16 |
90 | 109.5 | 103.8 | 110.5 | 82.9 | 9.2 | 16 |
95 | 114.3 | 108.5 | 115.5 | 82.9 | 9.2 | 16 |
100 | 119.1 | 113.3 | 121.0 | 82.9 | 9.2 | 16 |
105 | 127.0 | 121.2 | 129.0 | 89.2 | 9.2 | 16 |
110 | 131.8 | 126.0 | 134.0 | 89.2 | 9.2 | 16 |
115 | 136.5 | 130.7 | 139.0 | 89.2 | 9.2 | 16 |
120 | 142.9 | 137.0 | 144.0 | 95.5 | 9.2 | 16 |
