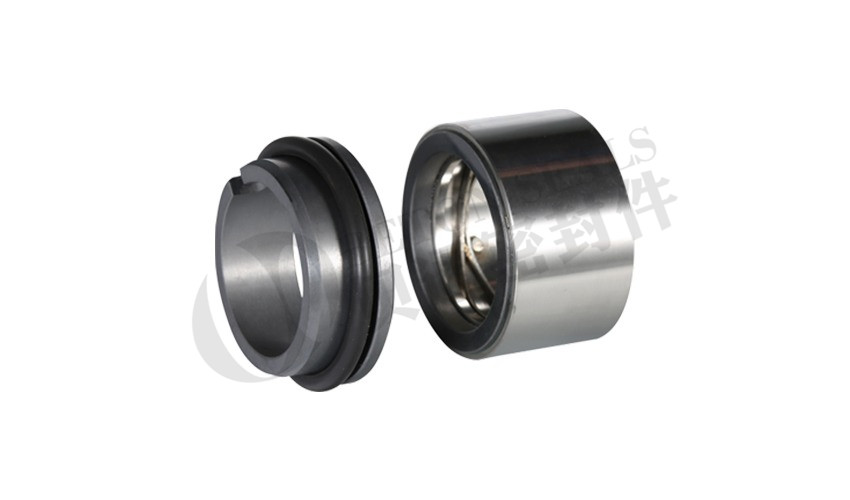

TH1691
TYPE:
Suit for Tuchenhagen Variflow Pumps
REPL ACEMENT :
Vulcan 1691
TEMPERATURE :
-40 to +240°C
PRESSURE :
≤1. 4Mpa
SPEED :
≤10m/s
MATERIAL :
B,Q2,U2,P,E,N,V,F,G ,Alfa

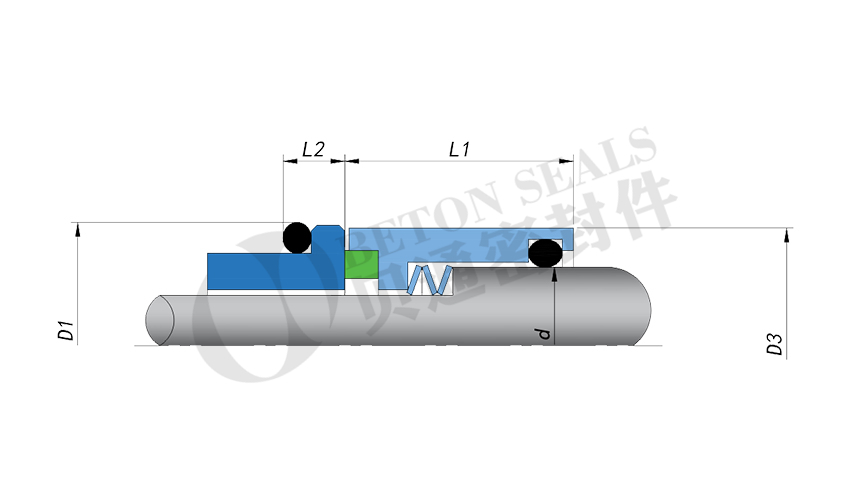

d(mm) | D1 | D3 | L1 | L2 | O.E.M PUMP Model |
30 | 40.00 | 39.00 | 24.50 | 7.00 | TP10,TP15,TP20,TP30 |
35 | 45.00 | 44.00 | 25.50 | 7.00 | TP16,TP25,TP50,TP80 |
