Type：

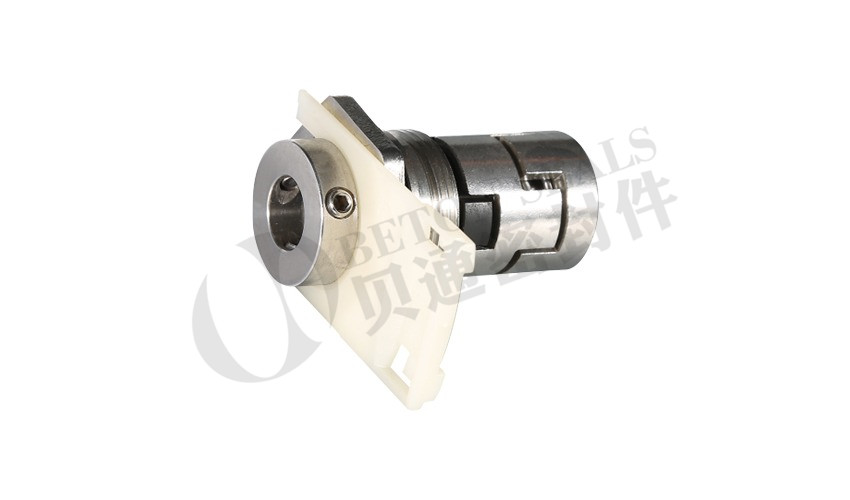

Grundfos Pump Seals
Replacement：
Equivalent with Grundfos type H seals
Temperature：
-30℃ to +200℃
Pressure：
≤2.5Mpa
Speed：
≤25m/s
Material：
B,Q2,U2,P,E,V,F,G
Suit for CR1，CR3，CR5，CRN1，CRN3，
CRN5，CRI1，CRI3，CRI5，CR32， CR45，
CR64， CR90，CRN32，CRN45， CRN64，
CRN90 Series Pumps.

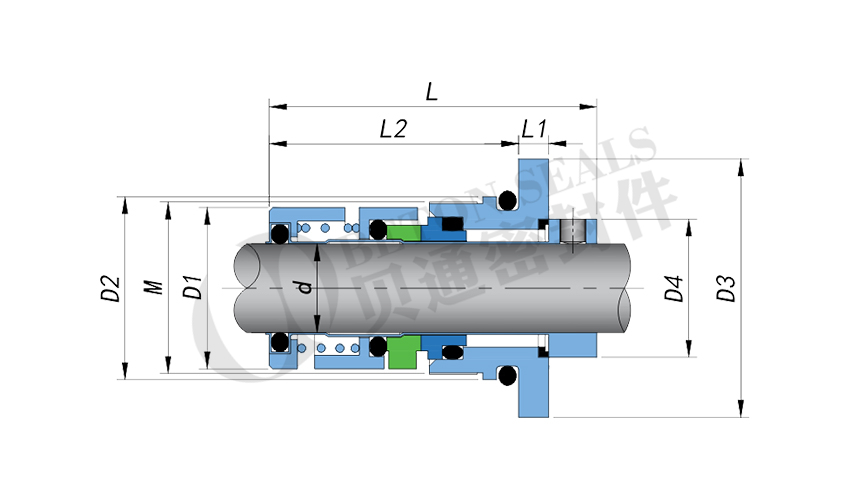

d | D1 | D2 | D3 | D4 | L | L1 | L2 | M |
12 | 25.00 | 29.00 | 33.50 | 25.00 | 55.50 | 4.00 | 44.50 | 28X1.5 |
16 | 30.50 | 34.00 | 40.50 | 29.00 | 58.00 | 5.00 | 46.00 | 33x1.5 |
